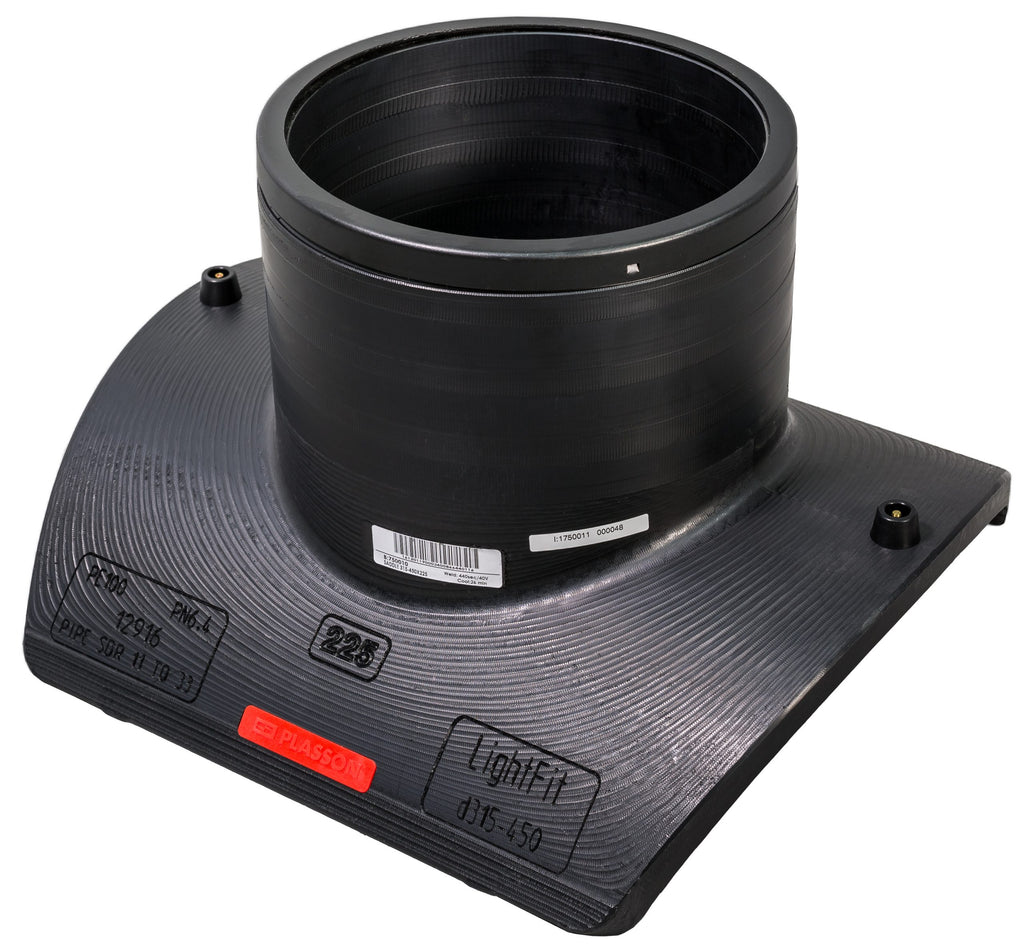

Plasson EF LightFit Branch Saddle
The Plasson EF LightFit Branch Saddle takes a branch connection off a large-diameter PE main without cutting the pipe, using a lighter-weight saddle body for easier handling on big pipe runs.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, the saddle body fuses to the pipe wall using electrofusion, with a 225mm branch outlet.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Gas pressure rating: PE100 SDR 17
- Water pressure rating: PN 10
- Suitable pipes: SDR 17 to SDR33
Available in 3 sizes from 315mm to 800mm.
