Plasson EF Branch Saddle Top-Loading (315mm - 1200mm)

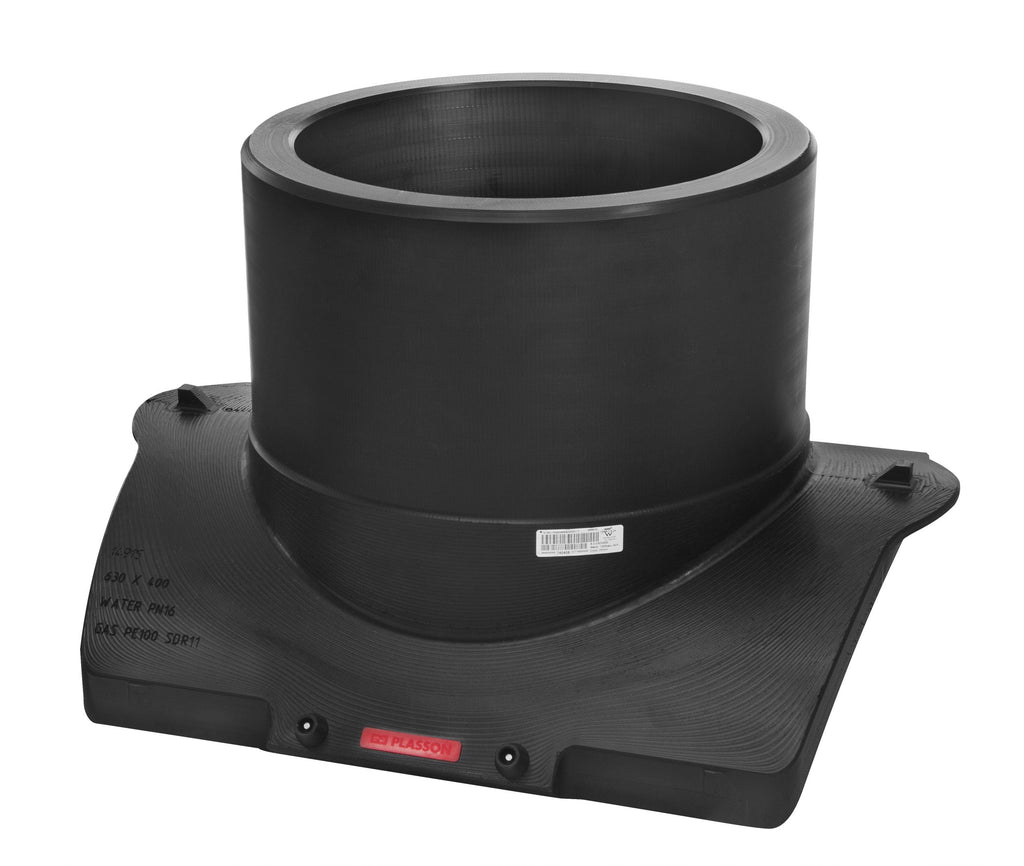

Plasson EF Branch Saddle Top-Loading

The EF Branch Saddle Top-Loading takes a branch connection off a large-diameter PE main, top-loading onto the pipe for the biggest run sizes in the Plasson EF Branch Saddle range.

Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129 (up to 800mm), it is welded to the pipe using electrofusion: fused onto the pipe wall via a control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, with no jointing compound, flame or mechanical seal involved.

Key specifications

• Body material: PE100
• Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129 (up to 800mm)
• Water pressure rating: PN 16 / PN 10 depending on size
• Gas pressure rating: PE100 SDR 11 / PE100 SDR 17 depending on size
• Suitable pipes: varies by size (see individual specification)

Available in 76 sizes from 315mm to 1200mm.
