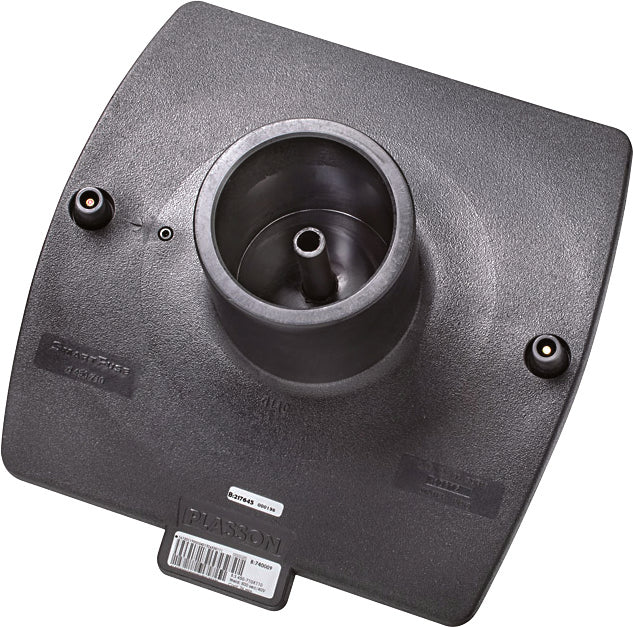

Plasson EF Branch Saddle

The Plasson EF Branch Saddle is an electrofusion branch-off fitting for PE pipe systems, clamping around the outside of an existing pipe to create a new branch connection without cutting out a section of the main pipe.

Fused onto the pipe using an electrofusion control box, the saddle melts its base into the pipe wall to form a permanent, homogeneous PE joint at the branch point, with no jointing compound, flame or mechanical clamp involved. Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201 and AS/NZS 4129, it is dual-rated for both water and gas distribution networks.

Key specifications

• Body material: PE100
• Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
• Water pressure rating: PN 16
• Gas pressure rating: PE100 SDR 11
• Suitable pipes: SDR 7 to SDR 26 depending on size (SDR 7 to SDR 11 on the 63mm run sizes, up to SDR 7 to SDR 26 on the largest 450-800mm banded run sizes)

Available in 37 sizes: run diameters from 63mm to 800mm with branch outlets from 32mm to 160mm.
