Plasson EF Transition Saddle

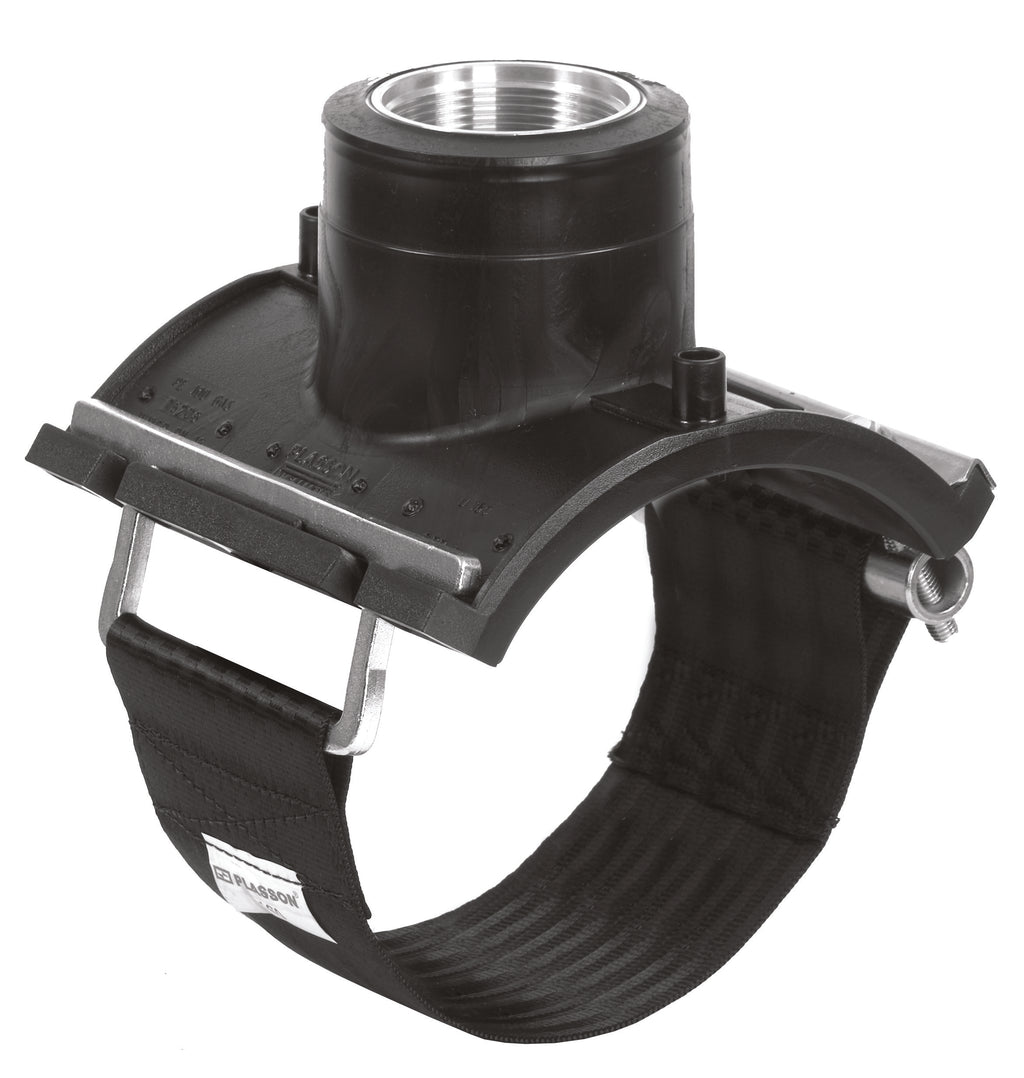

The Plasson EF Transition Saddle takes a threaded branch connection directly off a PE main without cutting the pipe, fusing onto the pipe wall and offering a brass thread outlet.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, the PE base fuses to the pipe wall using electrofusion, while the brass thread gives a mechanical connection to a valve, meter or other component.
Key specifications
- Body material: PE100
- Thread material: Brass
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Gas pressure rating: PE100 SDR 11
- Water pressure rating: PN 16
- Suitable pipes: SDR 7 to SDR 26 depending on size
Available in 10 sizes from 90mm to 800mm.
