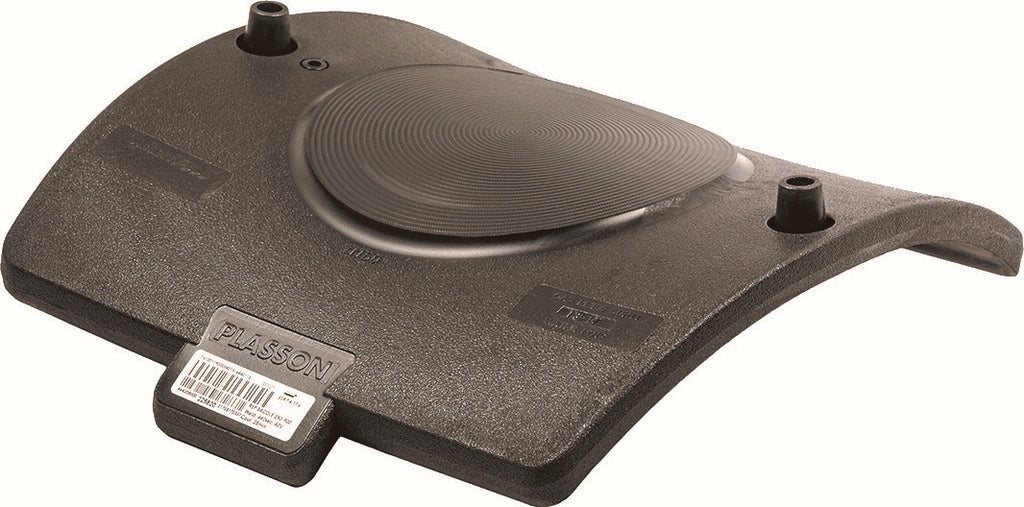

Plasson EF Repair Saddle
The EF Repair Saddle clamps over a section of damaged PE pipe and fuses to the pipe wall, sealing the damage without cutting out and replacing the pipe.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, it is welded to the pipe using electrofusion: fused onto the pipe wall via a control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, with no jointing compound, flame or mechanical seal involved.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Water pressure rating: PN 16
- Gas pressure rating: PE100 SDR 11
- Suitable pipes: Wall thickness ≥ 14.7mm
Available in 2 sizes: 250-900mm x 70mm (Multi-Size) and 400-900mm x 230mm (Multi-Size).
