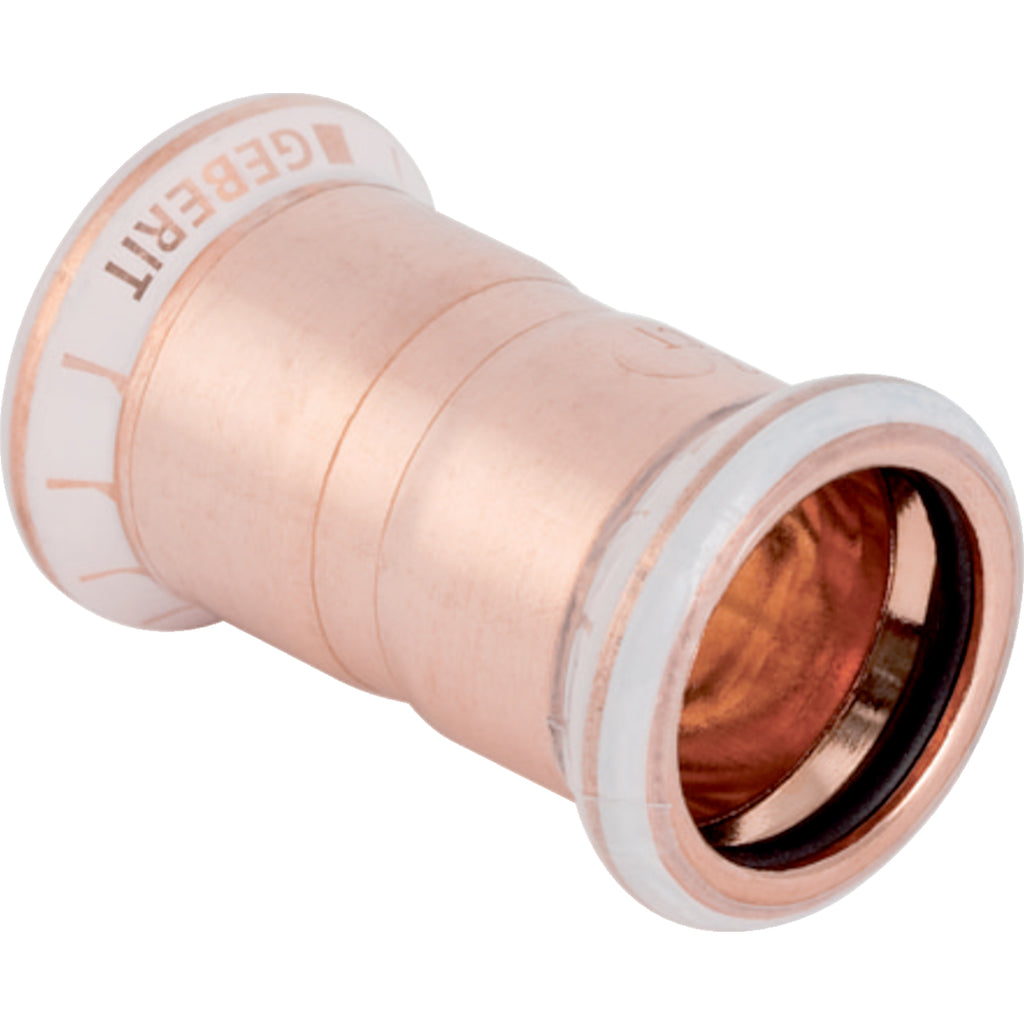

Geberit Mapress Copper Coupling (15mm - 108mm)
The Geberit Mapress Copper Coupling is a press-fit straight connector for joining two copper pipes of the same diameter, forming part of the Geberit Mapress press-fit system. Pressed with a tool in seconds, it delivers a fast, flame-free joint with no soldering and no hot-works permit, and is manufactured from Cu-DHP copper CW024A (EN 1412).

Every Mapress fitting is engineered for installation security: a pressing indicator and the leak-before-pressed feature make any unpressed connection immediately obvious during testing, while the seal ring and a pressing socket fitted with a transparent protection plug keep the joint clean and ready to press. Seal rings are CIIR (black) up to ø 54 mm and EPDM (black) from ø greater than 54 mm.

Key features

• Pressing indicator
• Leaky if unpressed up to ø ≤ 54 mm
• Seal ring made of CIIR, black, up to ø ≤ 54 mm
• Seal ring made of EPDM, black, from ø > 54 mm
• Pressing socket with transparent protection plug

Suitable for

• For cold and hot potable water
• For cooling and heating water without antifreeze agent
• For cooling and heating water with antifreeze agent
• For district heating water ≤ 120 °C
• For service water and process water
• For compressed air (oil purity class 0–3)
• For negative pressure
• For inert gases (e.g. nitrogen)
• For technical building systems, industry and shipbuilding

Available in sizes from 15mm to 108mm.
