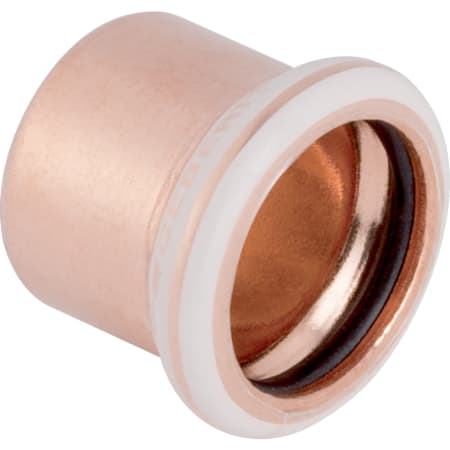

The Geberit Mapress Copper cap permanently seals the end of a Mapress Copper pipe with a single flame-free press connection. Made from Cu-DHP copper (CW024A, EN 1412), it gives a clean, leak-tight termination for potable water, heating and gas services.

The cap carries Geberit's pressing-security design: a pressing indicator for quick visual checks and a leak-before-pressed feature (on sizes up to ø 54 mm) so any unpressed joint reveals itself during testing. A transparent protection plug keeps the pressing socket clean until installation. Sizes up to ø 54 mm use a black CIIR seal ring; larger sizes use a black EPDM seal ring.

Key features

• Cu-DHP copper (CW024A, EN 1412)
• Flame-free press-fit connection for fast, safe installation
• Pressing indicator for quick visual verification
• Leak-before-pressed security up to ø 54 mm
• CIIR seal ring (≤ 54 mm) / EPDM seal ring (> 54 mm)
• Pressing socket with transparent protection plug

Suitable for

• Cold and hot potable water
• Cooling and heating water (with or without antifreeze)
• District heating water ≤ 120 °C
• Service water and process water
• Compressed air, negative pressure and inert gases
• Technical building services, industry and shipbuilding
• Permanent termination of pipe ends

Available from 15 mm to 108 mm (DN12–DN100) to suit every size in the Geberit Mapress Copper system.
