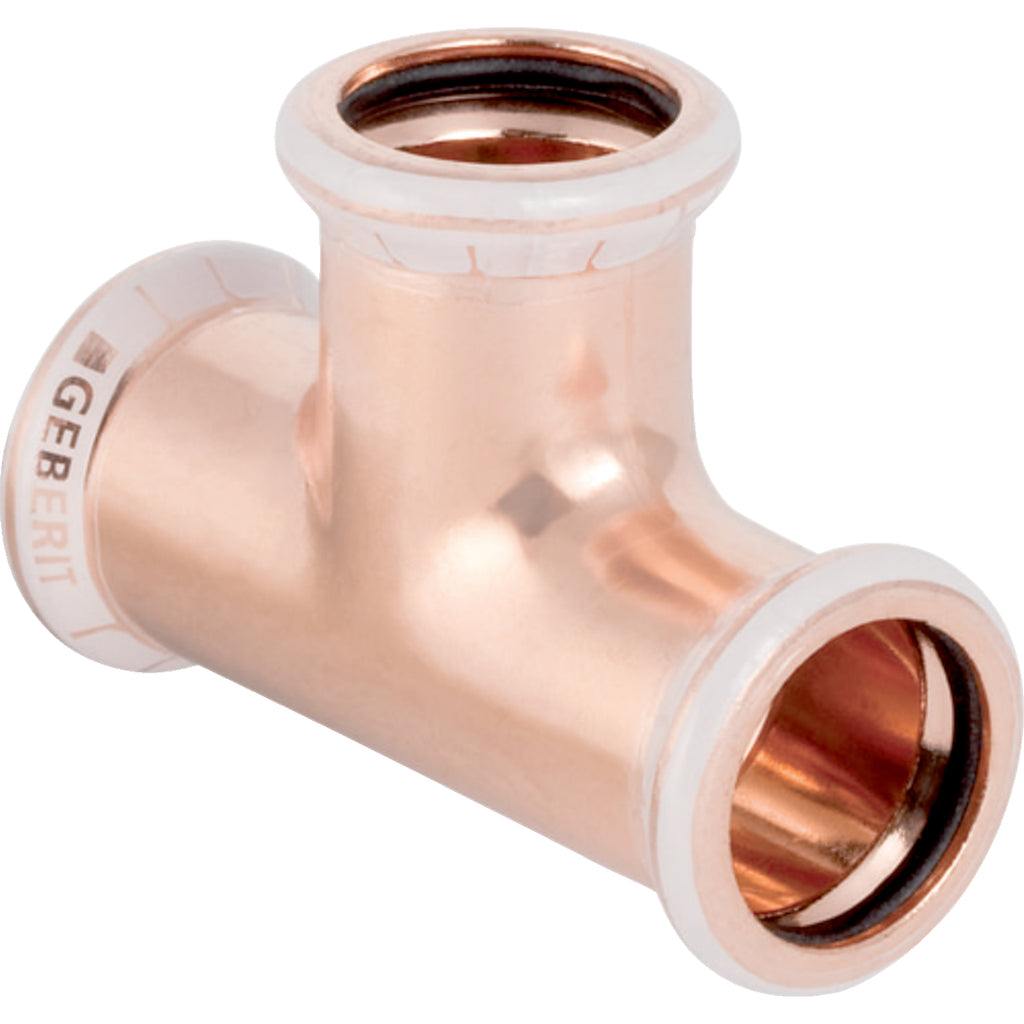

The Geberit Mapress Copper T-Piece, Equal is a press-fit branch fitting that joins three equal-diameter pipe runs at a 90° tee, forming part of the Geberit Mapress press-fit system. Pressed in seconds with a Mapress tool, it makes a secure, flame-free connection with no soldering, brazing or hot-works permit required, speeding up installation and reducing on-site risk. It is manufactured from Cu-DHP copper CW024A (EN 1412) for reliable, long-lasting performance.

Geberit press-fit security is built in: each fitting carries a pressing indicator and is designed to leak if left unpressed up to ø 54 mm, so any unpressed joint is identified during the leak test before commissioning. The pressing socket is fitted with a transparent protection plug, and uses a black CIIR seal ring up to ø 54 mm or a black EPDM seal ring above ø 54 mm.

Key features

• Pressing indicator
• Leaky if unpressed up to ø ≤ 54 mm
• Seal ring made of CIIR, black, up to ø ≤ 54 mm
• Seal ring made of EPDM, black, from ø > 54 mm
• Pressing socket with transparent protection plug

Suitable for

• For cold and hot potable water
• For cooling and heating water without antifreeze agent
• For cooling and heating water with antifreeze agent
• For district heating water ≤ 120 °C
• For service water and process water
• For compressed air (oil purity class 0–3)
• For negative pressure
• For inert gases (e.g. nitrogen)
• For technical building systems, industry and shipbuilding

Available in a size range from 15mm to 108mm.
