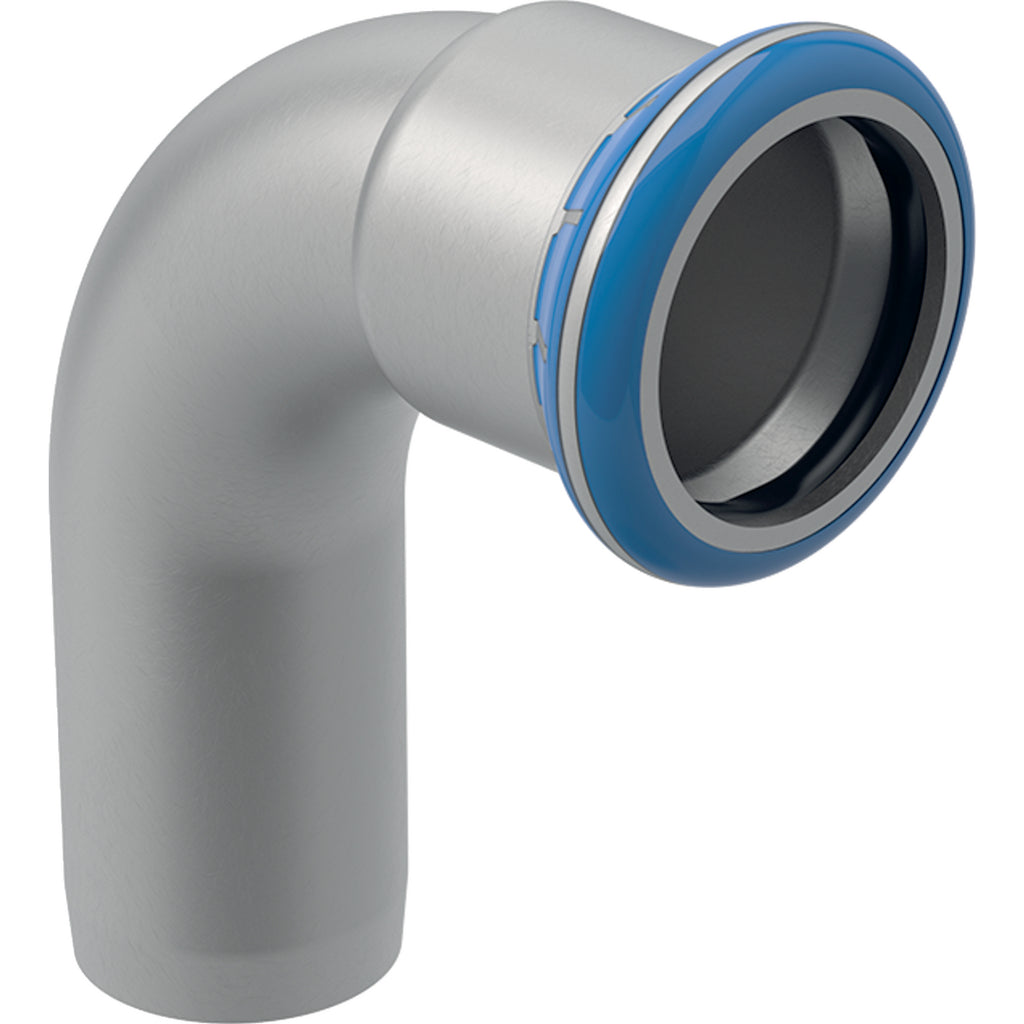

Geberit Mapress Stainless Steel Bend With Plain End 90° (15mm - 108mm)
The Geberit Mapress Stainless Steel Bend with Plain End is a press-fit bend that forms part of the Geberit Mapress system, allowing pipework to be joined in seconds with a single press of the tool. Because the connection is made cold, there is no soldering, no naked flame and no need for a hot-works permit, saving time on site and removing the fire risk associated with brazing. The fitting is manufactured from CrNiMo stainless steel 1.4401 to EN 10088 for excellent corrosion resistance.
Every Mapress fitting is engineered for installation security: an unpressed connection is designed to leak during the leak test so it can be identified before the system is filled, while the pressing indicator gives a clear visual confirmation once the joint has been made. The pressing socket is fitted with a transparent protection plug to keep the seal clean until installation.
Key features
- Pressing indicator
- Leaky if unpressed, so unpressed joints are easily identified
- Seal ring made of CIIR, black
- Pressing socket with transparent protection plug
Suitable for
- For cold and hot potable water
- For cooling and heating water without antifreeze agent
- For cooling and heating water with antifreeze agent
- For district heating water ≤ 120 °C
- For saturated steam ≤ 120 °C
- For service water and process water
- For treated water
- For rainwater with a pH value ≥ 5.5
- For grey and black water with a pH value ≥ 5.5
- For extinguishing water (wet)
- For extinguishing water (wet/dry, dry)
- For sprinklers (wet)
- For chemicals and technical liquids
- For compressed air (oil purity class 0–3)
- For negative pressure
- For inert gases (e.g. nitrogen)
- For industrial gases (e.g. acetylene, shielding gases)
- For technical building systems, industry and shipbuilding
Available in a size range from 15mm to 108mm.
