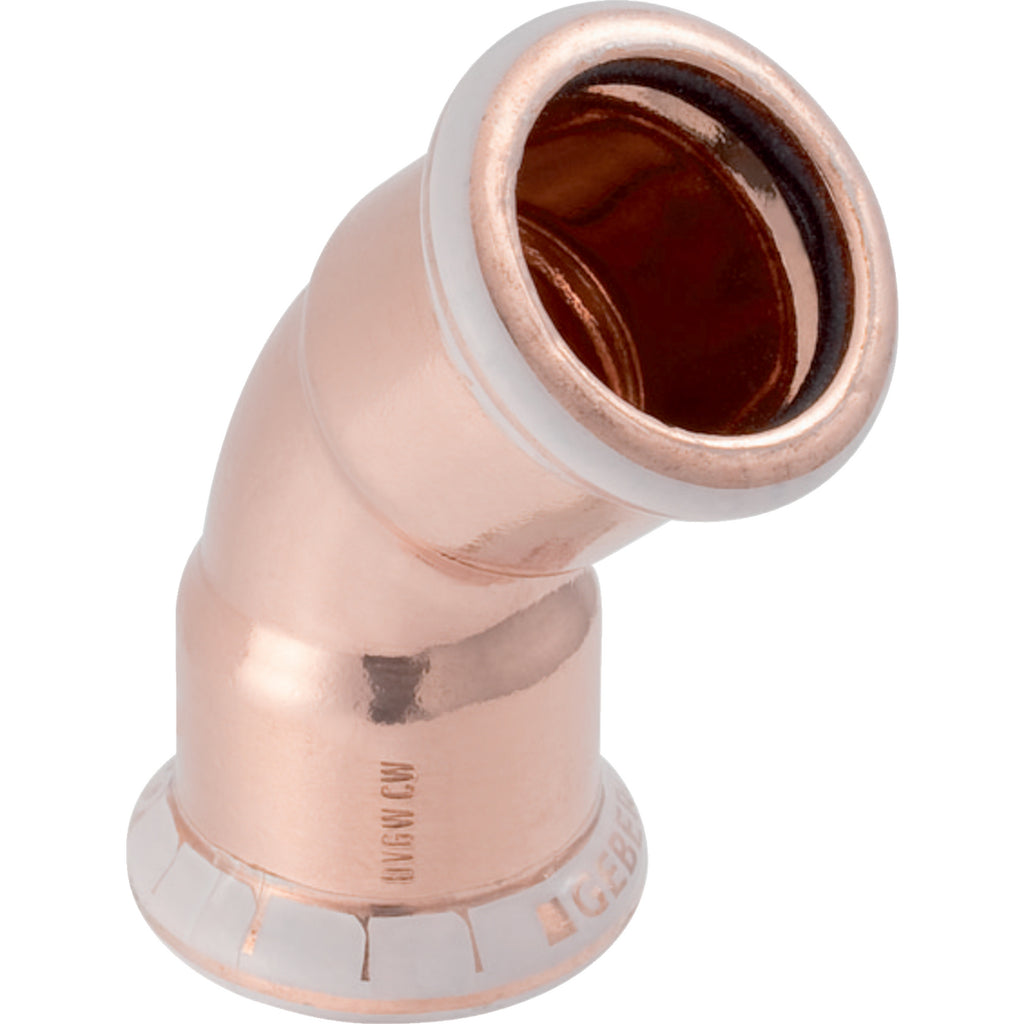

Geberit Mapress Copper Bend (15mm - 108mm)
The Geberit Mapress Copper bend is a press-fit pipe bend that forms part of the Geberit Mapress press-fitting system, allowing pipework to be turned and routed without soldering. It delivers a secure, flame-free connection in seconds, eliminating hot works and removing the need for a hot-works permit on site. The fitting is manufactured from Cu-DHP copper CW024A (EN 1412) for reliable performance across potable water and technical building applications.

Every connection is backed by Geberit's proven press-fit security: an integrated pressing indicator makes unpressed joints easy to spot, while the leak-before-pressed feature means any unpressed fitting up to ø 54 mm will visibly leak during the pressure test. A pressing socket with a transparent protection plug keeps the seal clean until installation, with a CIIR seal ring fitted up to ø 54 mm and an EPDM seal ring from ø 54 mm upwards.

Key features

• Pressing indicator
• Leaky if unpressed up to ø 54 mm
• Seal ring made of CIIR, black, up to ø 54 mm
• Seal ring made of EPDM, black, from ø 54 mm
• Pressing socket with transparent protection plug

Suitable for

• For cold and hot potable water
• For cooling and heating water without antifreeze agent
• For cooling and heating water with antifreeze agent
• For district heating water ≤ 120 °C
• For service water and process water
• For compressed air (oil purity class 0–3)
• For negative pressure
• For inert gases (e.g. nitrogen)
• For technical building systems, industry and shipbuilding

Available in a range of sizes from 15mm to 108mm, with bend angles varying by variant.
