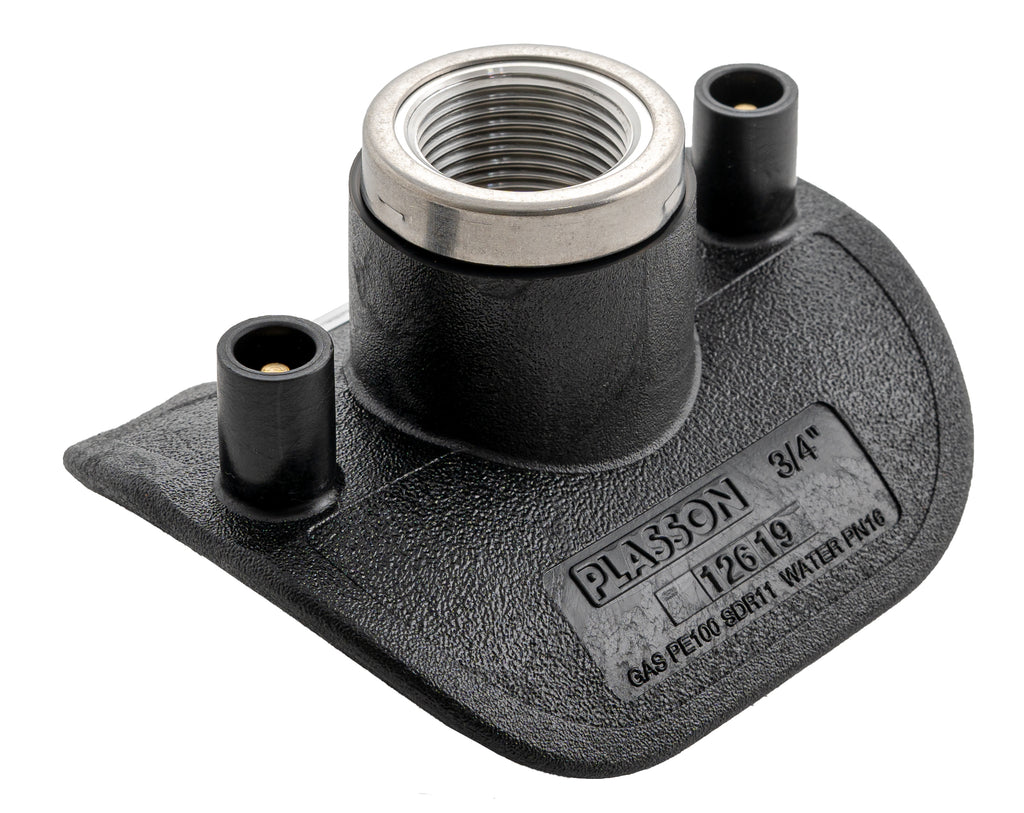

Plasson EF Sensor Adaptor with Stainless Steel Thread
The EF Sensor Adaptor with Stainless Steel Thread takes a threaded sensor or monitoring-device connection directly off a PE main without cutting the pipe, fusing onto the pipe wall and offering a stainless steel thread outlet.
Manufactured in PE100 and compliant with ISO 4437, ISO 4427, EN 1555, EN 12201, AS/NZS 4129, the PE base fuses to the pipe wall using electrofusion, while the stainless steel thread (ISO 7-1) gives a mechanical connection for a sensor, meter or other threaded component.
Key specifications
- Body material: PE100
- Thread material: Stainless Steel
- Thread standard: ISO 7-1
- Standards: ISO 4437, ISO 4427, EN 1555, EN 12201, AS/NZS 4129
- Water pressure rating: PN 16
- Gas pressure rating: PE100 SDR 11
- Suitable pipes: SDR 7 to SDR 26 / See label on product depending on size
Available in 6 sizes from 110mm to 1200mm.
