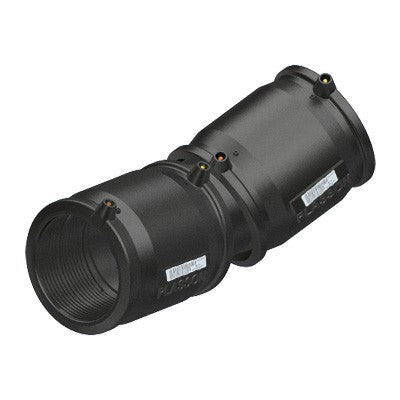

Plasson EF Adjustable Elbow
The EF Adjustable Elbow takes a variable change of direction in a PE pipe run, letting the installer set the angle on site rather than stocking a fixed-degree bend.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, it is welded to the pipe using electrofusion: fused onto the pipe ends via a control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, with no jointing compound, flame or mechanical seal involved.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Water pressure rating: PN 16
- Gas pressure rating: PE100 SDR 11
- Suitable pipes: SDR 7 to SDR 17
Available in 5 sizes from 90mm to 225mm.
