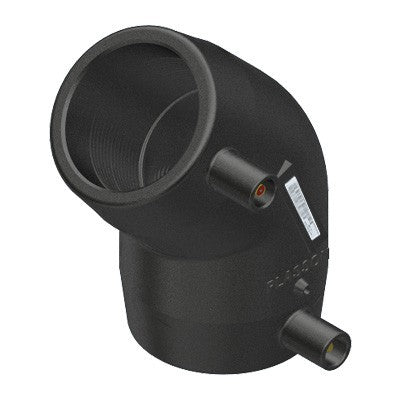

Plasson EF 45° Elbow
The Plasson EF 45° Elbow is an electrofusion fitting for PE pipe systems, taking a 45° change of direction in a pipe run.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, it is welded to the pipe using electrofusion: fused onto the pipe ends via a control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, with no jointing compound, flame or mechanical seal involved.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Water pressure rating: PN 16
- Gas pressure rating: PE100 SDR 11
- Suitable pipes: SDR 7 to SDR 17 / SDR 7 to SDR 21 depending on size
Available in 8 sizes from 50mm to 225mm.
