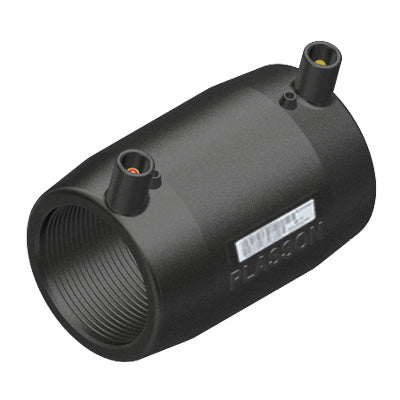

Plasson EF Coupler
The Plasson EF Coupler joins two lengths of PE pipe of the same diameter in a single straight electrofusion joint.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129 (up to 800mm), it is welded to the pipe using electrofusion: fused onto the pipe ends via a control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, with no jointing compound, flame or mechanical seal involved.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129 (up to 800mm)
- Water pressure rating: PN 16 / PN 10 depending on size
- Gas pressure rating: PE100 SDR 11 / PE100 SDR 17 depending on size
- Suitable pipes: SDR 7 to SDR 11 / SDR 7 to SDR 17 / SDR 11 to SDR 41 / SDR 7 to SDR 21 / SDR 7 to SDR 33 depending on size
Available in 15 sizes from 20mm to 630mm.
