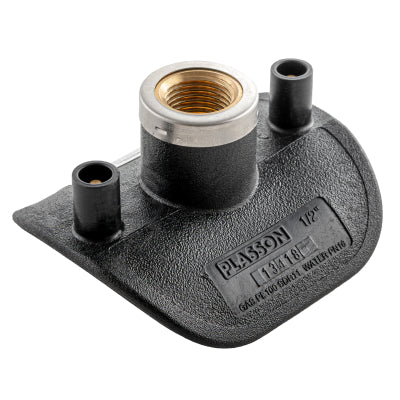

Plasson EF Sensor Adaptor
The Plasson EF Sensor Adaptor gives a threaded port for a sensor or monitoring instrument off a PE main, without cutting the pipe.
Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129, the PE base fuses to the pipe wall using electrofusion, while the brass thread gives a mechanical connection for the sensor fitting.
Key specifications
- Body material: PE100
- Thread material: Brass
- Thread standard: ISO 7-1
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Gas pressure rating: PE100 SDR 11
- Water pressure rating: PN 16
Available in 6 sizes from 110mm to 1200mm.
