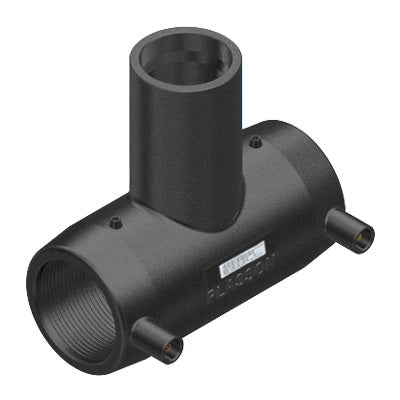

Plasson EF Tee 90°
The Plasson EF Tee 90° is an electrofusion branch fitting for PE pipe systems, giving a permanent three-way connection where a pipeline needs to split off in a right-angle branch.
Fused onto the pipe ends using an electrofusion control box, the joint melts the fitting and pipe wall together into a single homogeneous PE structure, giving the branch the same strength and integrity as the pipe itself, with no jointing compound, flame or mechanical seal involved. Manufactured in PE100 and compliant with ISO 4427, ISO 4437, EN 1555, EN 12201 and AS/NZS 4129, it is dual-rated for both water and gas distribution networks.
Key specifications
- Body material: PE100
- Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129
- Water pressure rating: PN 16
- Gas pressure rating: PE100 SDR 11
- Suitable pipes: SDR 7 to SDR 17 (SDR 7 to SDR 11 on the 20mm and 32mm sizes)
Available in 10 sizes from 20mm to 250mm.
