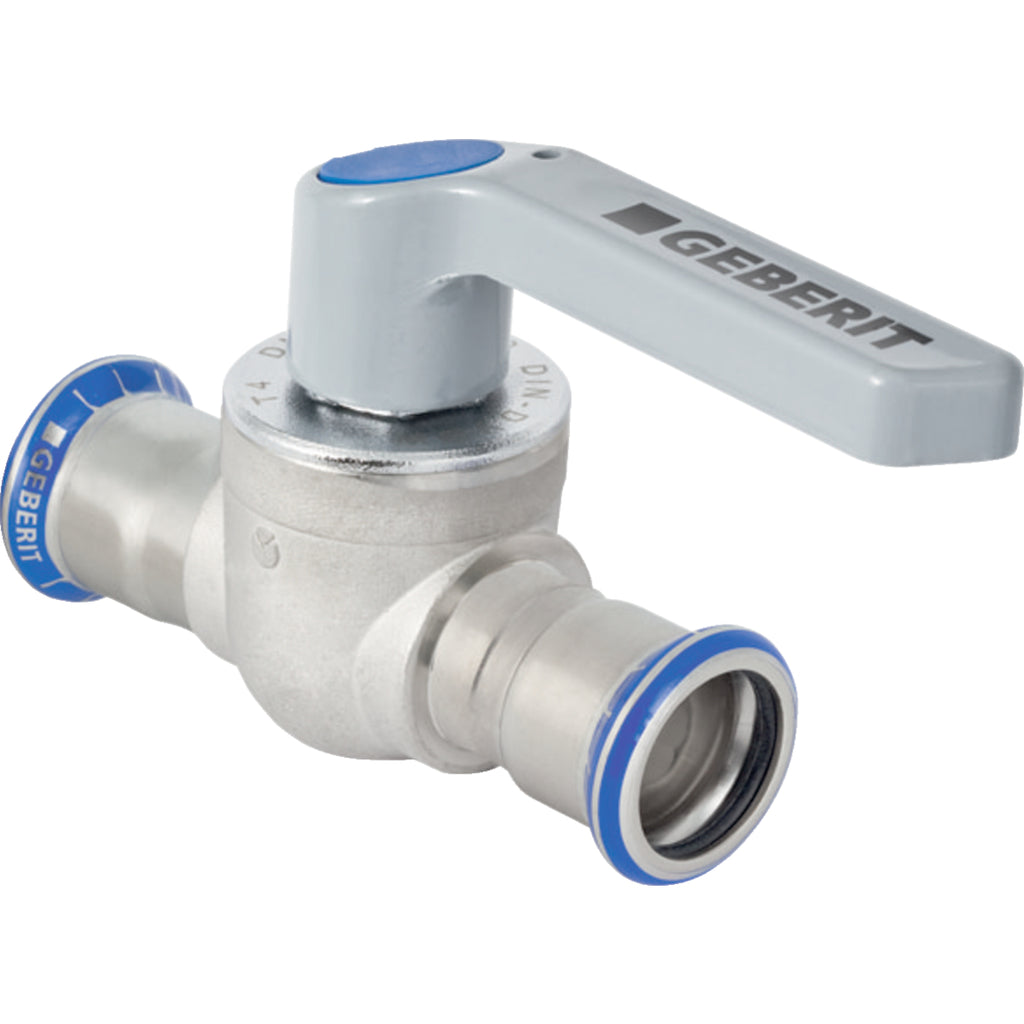

Geberit Mapress Stainless Steel Ball Valve With Actuator Lever (15mm - 54mm)
The Geberit Mapress Stainless Steel Ball Valve with Actuator Lever is a press-fit shut-off valve for use within the Geberit Mapress system. Featuring Mapress pressing connections, it delivers a secure, flame-free joint in seconds with no soldering and no hot-works permit required, helping speed up installation on site. It is manufactured from CrNiMo steel 1.4401 (EN 10088) for durability and corrosion resistance.

Engineered for installation security, the valve incorporates a pressing indicator and a "leaky if unpressed" feature, so any unpressed connection is easily identified during commissioning. The pressing socket is fitted with a transparent protection plug, and the joint is sealed with a CIIR (black) seal ring.

Key features

• Approval in accordance with DVGW
• Model Geberit T4
• Ball and base unit fully exposed to flow
• Lever fastening with screw
• Replaceable upper part
• Ball made of PPSU
• Upper part caulk made of EPDM
• Ball caulks made of silicone
• Pressing indicator
• Leaky if unpressed
• Seal ring made of CIIR, black
• Pressing socket with transparent protection plug

Suitable for

• For cold and hot potable water
• For cooling and heating water without antifreeze agent
• For cooling and heating water with antifreeze agent
• For treated water (application range according to Technical Information „Treated water")
• For rainwater with a pH value ≥ 5.5

Available in a size range of 15mm to 54mm.
