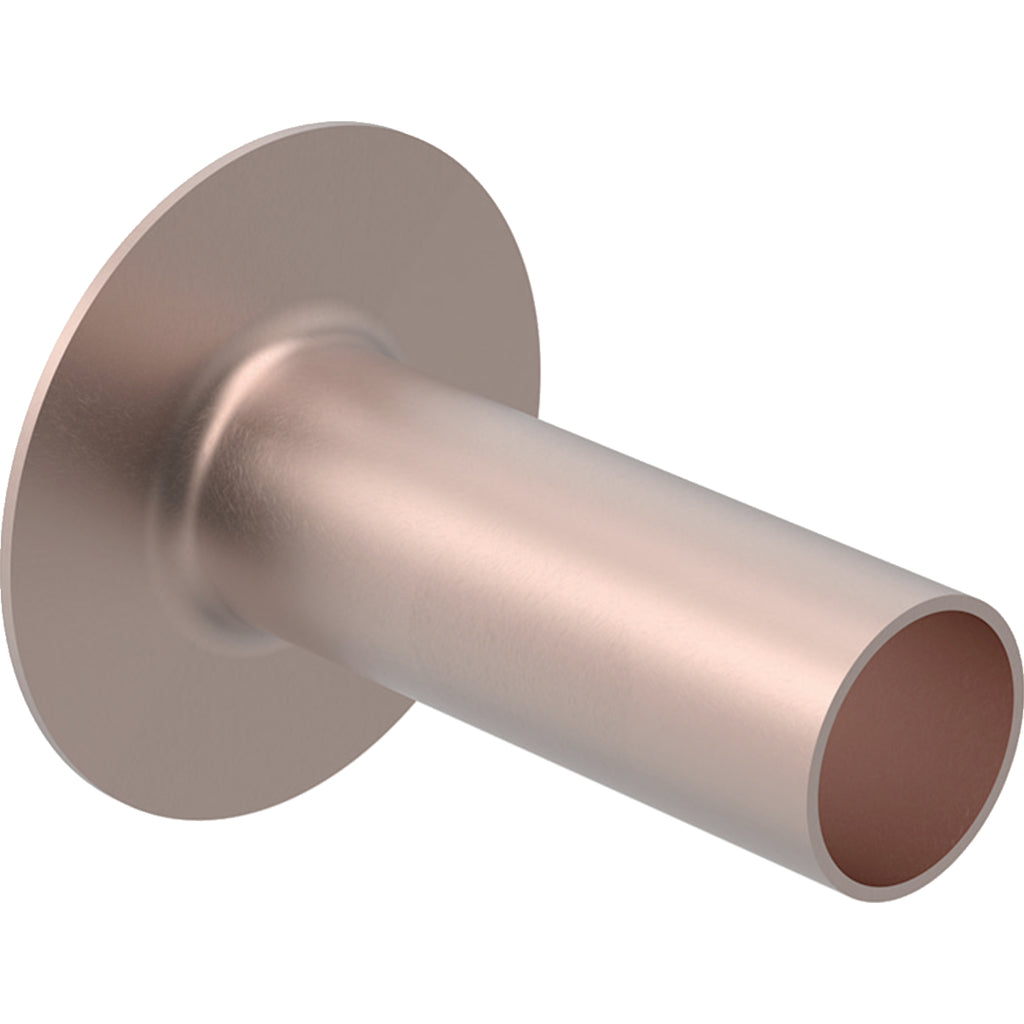

Geberit Mapress Copper Flanged Stub With Plain End, For Loose Flange PN 10/16 (28mm - 108mm)The Geberit Mapress Copper flanged stub with plain end is a press-fit connection piece for joining copper pipework to a loose flange, forming part of the proven Geberit Mapress press-fit system. Instead of soldering, the connection is made in seconds with a single press of the jaw, giving a fast, flame-free joint that needs no hot-works permit. It is manufactured from Cu-DHP copper CW024A (EN 1412).
Every Geberit Mapress fitting is engineered for installation security and consistent quality, so each pressed joint delivers a permanently leak-tight connection you can rely on across the system.
Key features
- Suitable for loose flange, in accordance with EN 1092-1, flange type 02.
Suitable for
- For cold and hot potable water
- For cooling and heating water without antifreeze agent
- For cooling and heating water with antifreeze agent
- For district heating water ≤ 120 °C
- For service water and process water
- For compressed air (oil purity class 0–3)
- For negative pressure
- For inert gases (e.g. nitrogen)
- For technical building systems, industry and shipbuilding
Available in a size range of 28mm to 108mm.
