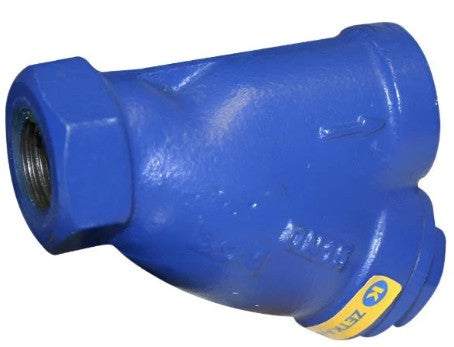

Y Strainer Cast Iron Body BSPP — 10°C to +200°C

Y Strainer Cast Iron Body BSPP — 10°C to +200°C

The Y Strainer Cast Iron Body BSPP is engineered to intercept these contaminants before they reach critical components, keeping pipework running cleanly and reliably across a wide range of industrial and commercial applications.

The strainer's distinctive "Y" configuration channels solids into an internal mesh screen basket, where they are captured without restricting flow through the main pipeline. When the basket requires cleaning, the process is straightforward,- remove the plug, clear the collected material, and refit,- no dismantling of the pipeline required. For maintenance teams working under pressure, that distinction matters. The British Standard Pipe Parallel (BSPP) threading ensures a consistently tight connection. Rather than relying on tapered thread interference, BSPP fittings use an O-ring or bonded washer to create a secure, pressure-tight seal,-reducing the risk of leaks at the joint and simplifying installation within compatible pipework systems.

The cast iron body delivers excellent structural rigidity and effective vibration dampening, making it well-suited to high-cycle environments where mechanical stress is a factor. It offers a strong, cost-effective solution for systems handling non-corrosive media, where the material's durability more than compensates for its higher brittleness relative to steel or bronze alternatives.

• Used to protect downstream equipment from damage caused by debris, scale, and rust inside a piping system
• The "Y" shape allows the strainer to collect solids in a internal mesh screen basket, which can then be cleaned out via a plug without dismantling the main pipeline
• The unit uses straight, parallel threads and relies on an O-ring or bonded washer to create a pressure-tight seal
• Provides excellent structural rigidity and vibration dampening but is more brittle than steel or bronzeCan handle mild freezing conditions up to high-heat applications
• Operating up to +200°C makes it ideal for low-to-medium pressure saturated steam lines. It stops pipe scale from clogging steam traps and control valves
• It filters closed-loop water systems, protecting expensive chillers, boilers, and circulating pumps from debris
• It filters water before it enters sensitive equipment like flow meters, pressure-reducing valves, and regulators
• Cleans light oils, gases, and thermal fluids that do not chemically attack cast iron
•
  Applications:
  Commonly used in;
• Steam systems
• Heating  & cooling
• Hot & cold water supply,and,
• Non corrosive industrial fluid lines
