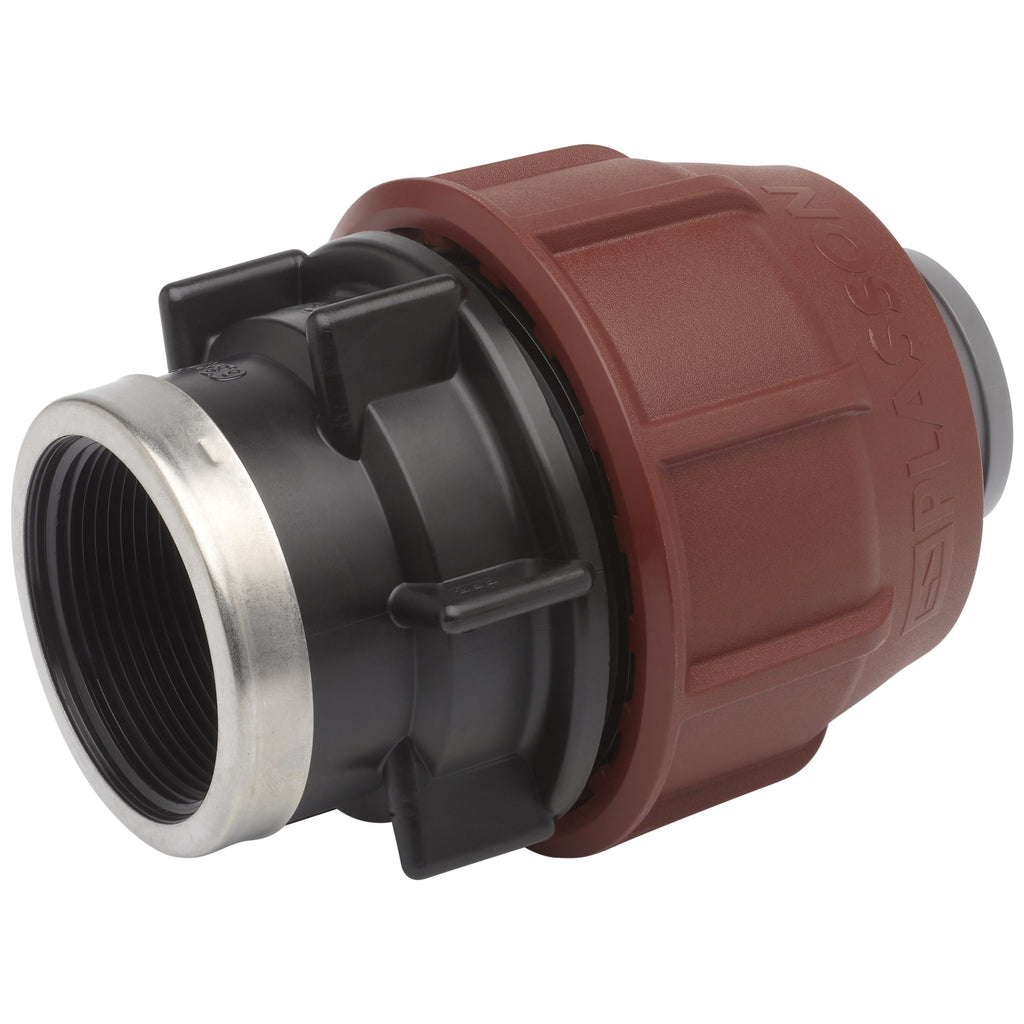

Plasson Female Adaptor Barrier
The Plasson Female Adaptor Barrier is a mechanical compression fitting for use with barrier pipe — MDPE pipe systems fitted with a protective barrier layer for use in contaminated ground conditions, such as brownfield or ex-industrial sites. It joins a length of barrier pipe to a female BSP-threaded connection.
Manufactured with a Polypropylene, high-grade copolymer body and nut, sealing on an NBR seal with a Polyacetal split ring. A nut is tightened over the pipe end, compressing a split ring and seal against the pipe wall to form a secure, mechanical joint — no solvent, heat or specialist tools required.
Key specifications
- Body and nut material: Polypropylene, high-grade copolymer
- Seal material: NBR
- Split ring material: Polyacetal
Available in 5 sizes from 25mm to 63mm: a choice of 3/4" or 1" female thread at 25mm and 32mm, 2" female thread at 63mm.
