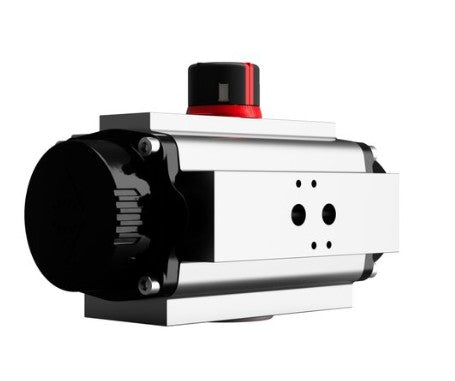

ADA40 F05 Actreg Double Acting Actuator c/w 14-9mm Star Reducer

Keep piping system running smoothly with automated, reliable valve control from the ADA40 F05 Actreg. Built for quarter-turn valves such as butterfly and ball valves, this double-acting actuator removes the need for manual handles or levers, using compressed air to open and close valves with precision every time.

Because it's double acting, the ADA40 relies entirely on air pressure to both open and close the valve, with no internal springs required. This gives consistent, dependable performance cycle after cycle. At a standard 6 bar of air pressure, it delivers approximately 41 Nm of torque—more than enough grunt for small-to-medium process valves handling demanding daily operations.

Fitting the ADA40 to a system is straightforward, thanks to its F05 mounting pattern built to ISO 5211 standard. This allows the actuator to bolt directly onto the top flange of any matching F05 valve, so you won't run into compatibility headaches during installation. And with valve stems that vary from job to job, flexibility matters: while the actuator's output drive features a standard 14mm square socket, the included star reducer bush lets you adapt down to a 9mm stem, giving you a secure, precise grip regardless of your valve's size.

From water and wastewater treatment to chemical processing, food and beverage production lines, and HVAC or industrial cooling systems, the ADA40 F05 Actreg is engineered to keep critical processes flowing without interruption. When you need dependable, low-maintenance valve automation you can trust, this actuator delivers the torque, compatibility, and consistency an operation depends on.

Summary:

• Used to automatically open and close quarter-turn valves (such as butterfly valves or ball valves) within a piping system
• The device uses compressed air to mechanically turn the valve
• The actuator requires compressed air for both operations air is pumped in to open the valve, and air is pumped into a separate chamber to close it. It relies entirely on air pressure rather than internal springs to reset
• At a standard 6 bar of air pressure, it typically outputs around 41 Nm of torque, making it ideal for small-to-medium process valves
• This specifies the mounting bolt-hole pattern (ISO 5211 standard) on the bottom of the actuator. It ensures that the actuator can cleanly bolt directly onto the top flange of a matching F05 valve
• The standard output drive shaft of the ADA40 actuator features a 14mm square socket
• The included "star reducer" is a small metal bush insert that drops the internal connection size down from 14mm to 9mm



Applications:
Common applications include;

• Water and wastewater treatment
• Chemical processing
• Food & beverage production lines
• HVAC and industrial cooling systems
