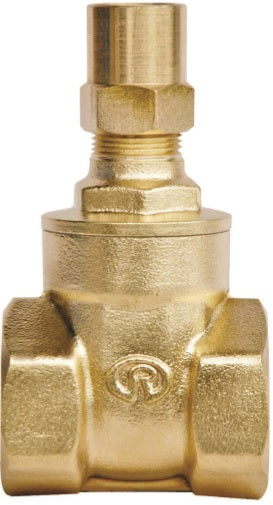

Albion Brass Gate Valve - ART 640LS
Durable and lightweight, this Albion valve is WRAS approved for use with both potable water and saturated steam. Featuring a built-in lockshield, it can be trusted with the task of maintaining the purity of a water supply. The body and wedge of this gate valve are made from dezincification resistant brass. Full bore with a female BSPT taper threading, this valve conforms to BS5154:1991 and can sustain high pressures and temperatures.
Summary:
- Screwed BSP Taper (ISO 7/1) or NPT(ANSI B1.20.1)
- DZR Brass Body & Wedge
- BS5154
- WRAS Approved
- Lockshield Key available separately
Usage:
- Potable Drinking Water
- Saturated steam
Specifications:
PN Rating (Pressure Nominale)
PN20
Pressure Ratings
20 Bar
Material
Brass DZR - CW602N
Connection
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1)
Wedge
DZR- CW602N
Bonnet
DZR - CW602N
Stem Packing
PTFE
Gland
Brass - HOb58-2
Working Temperature
-20°C to +170°C
