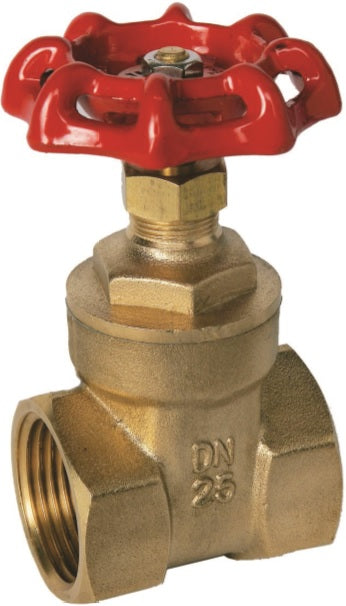

Brass Gate Valve - ART 640HW
The Art 640HW is a class-leading range of Horizontal Gate Valves manufactured in accordance with BS 5154. It features a high-sector forged brass body and wedge with fully machined stems for maximum strength and performance.
The valve is designed to provide excellent resistance against burst pressure. Suitable for applications where the assets are permanently connected to the system with little or no isolation.
Dezincification Resistant Brass (DZR) is resistant to corrosion, making it a good choice for use in applications where there is a risk of exposure to chemicals or other corrosive substances.
Summary:
- Screwed BSP Taper (ISO 7/1) or NPT ANSI B1.20.1)
- DZR Brass Body & Wedge
- Cast Hand Wheel
- BS 5154
- WRAS Approved
PN rating (Pressure Nominale): PN20
Pressure Rating: 20 Bar
Construction
| Material: |
Brass DZR - CW602N |
|
Connection:
|
BSP Taper F/F Ends (ISO 7/1) or NPT (ANSI B1.20.1) |
|
Gasket:
|
PTFE
|
|
Bonnet:
|
DZR - CW602N |
Stem:
|
DZR - CW602N |
Packing:
|
Brass - HPb58-2 |
Washer Ring:
|
Brass - HPb58-2 |
Handwheel:
|
HT200 |
| Working Temperature: |
-20°C to +170°C |
