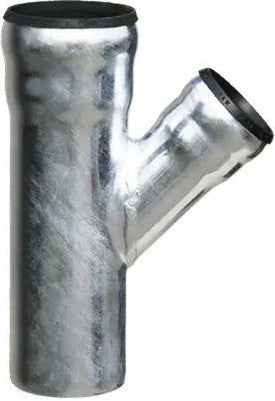

45° Reducing Branch Tee
This 45° reducing branch connects a primary pipeline to a smaller secondary pipe. It directs fluid efficiently while maintaining system pressure. The fitting adapts to various infrastructure requirements.
Compliance with standard specifications including EN 545, EN 598, EN 10253, ASME B16.9 and EN 1401 ensures reliable integration into existing networks. The component weight ranges from 0.5kg to 12kg depending on the selected material.
Applications:
- Water distribution networks
- Wastewater management
- Industrial fluid transport
- Drainage systems
- Public utilities
Summary:
- Configuration: 45 degree reducing branch
- Main pipe diameter: DN125
- Branch pipe diameter: DN70
- Applicable standards: EN 545, EN 598, EN 10253, ASME B16.9, EN 1401
- Weight range: 0.5 kg to 12 kg
