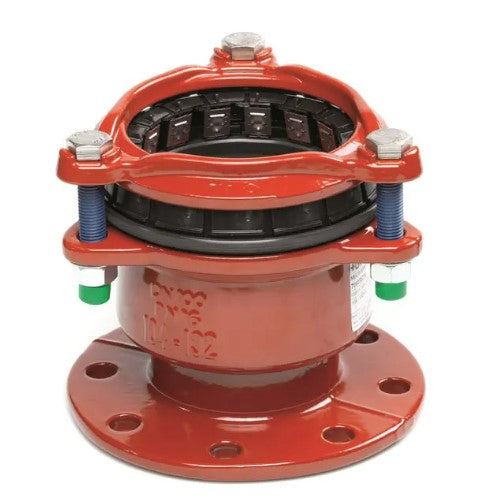

Georg Fischer WAGA Multi Joint Flange Adapter 3057+ with EPDM Seal
Designed for the repair, maintenance and connection of above and below ground pipelines conveying gas & water, the Multi/Joint 3057+ Flange Adapter has exceptional durability, is corrosion resistant and manufactured to the highest quality standards. The restraint fitting is suitable in water up to 16 bar and in *gas up to 8 bar. The fittings can be easily installed even in inclement weather with no requirement for specialist tools, saving on time and labour costs.
*Can be supplied with gas NBR seals on request
Summary:
- Quick, safe and easily installed
- 50 year life expectancy
- Durable & corrosion resistant
- Suitable for all pipe materials
Standards:
- WRAS approved
- Kiwa approved
- Certified to NSF standard
Specifications:
- Insert a stiffener on plastic pipe for restraint versions
- Uni/Fiks ring
- EPDM rubber gasket
- Stainless steel nuts A2
- Stainless steel A2/Lubo coated
- Clamp ring is ductile cast iron GGG45-EN-GJSS-450-10
- Resicoat epoxy powder coated/Type RT 9000 R4
