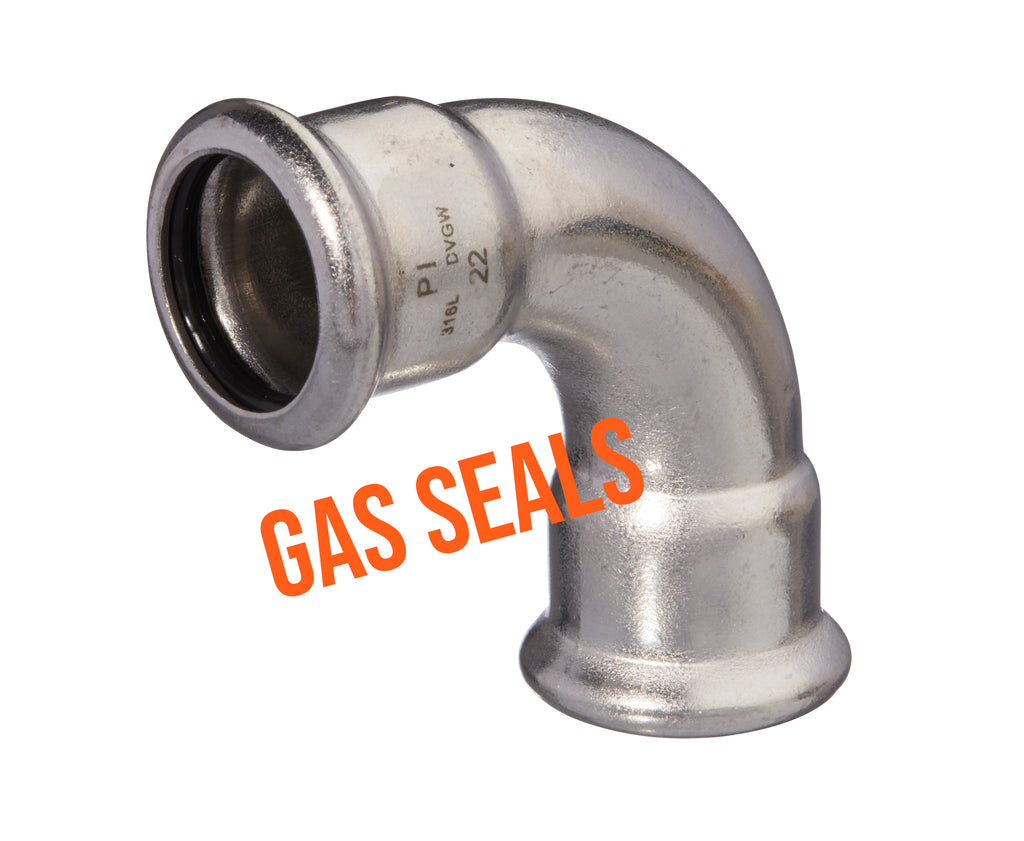

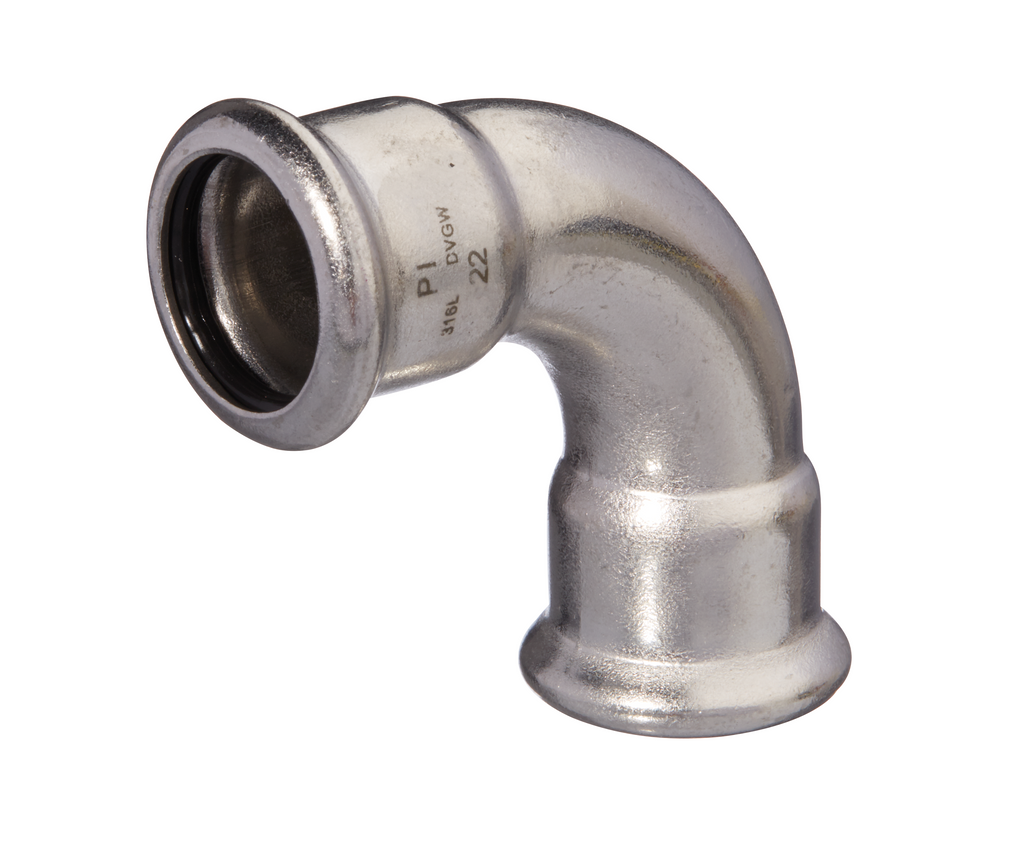

90° Stainless Steel Female/Female Elbow with Gas Seals
The 90° Female/Female bend is a high quality Stainless Steel press fitting conforming to BS EN 10088-3 and is DVGW G260 approved for use with flammable gases and
liquid petroleum gas (LPG). HNBR rubber seals/O rings are factory fitted as standard. The stainless bends, as with all Press-Fittings can be installed within seconds using a press gun, - eradicating the need for soldering and hot work.
The operating temperature for this fitting is -20°C to 70°C (with HNBR seal) with a pressure rating of 5 bar (PN5).
Summary:
- Conforms to BS EN 10088-3
- DVGW G260 approved
- HNBR Gas seals
- Applications:
- Drinking water
- Purified water
- Heating
- Cooling water
- Boosted cold water
- Plant rooms
- Steam condensate
- Flammable gasses classed and according to DVGW G 260 (HNBR Gas approved yellow seals)
- Compressed air, argon, nitrogen, carbon dioxide
