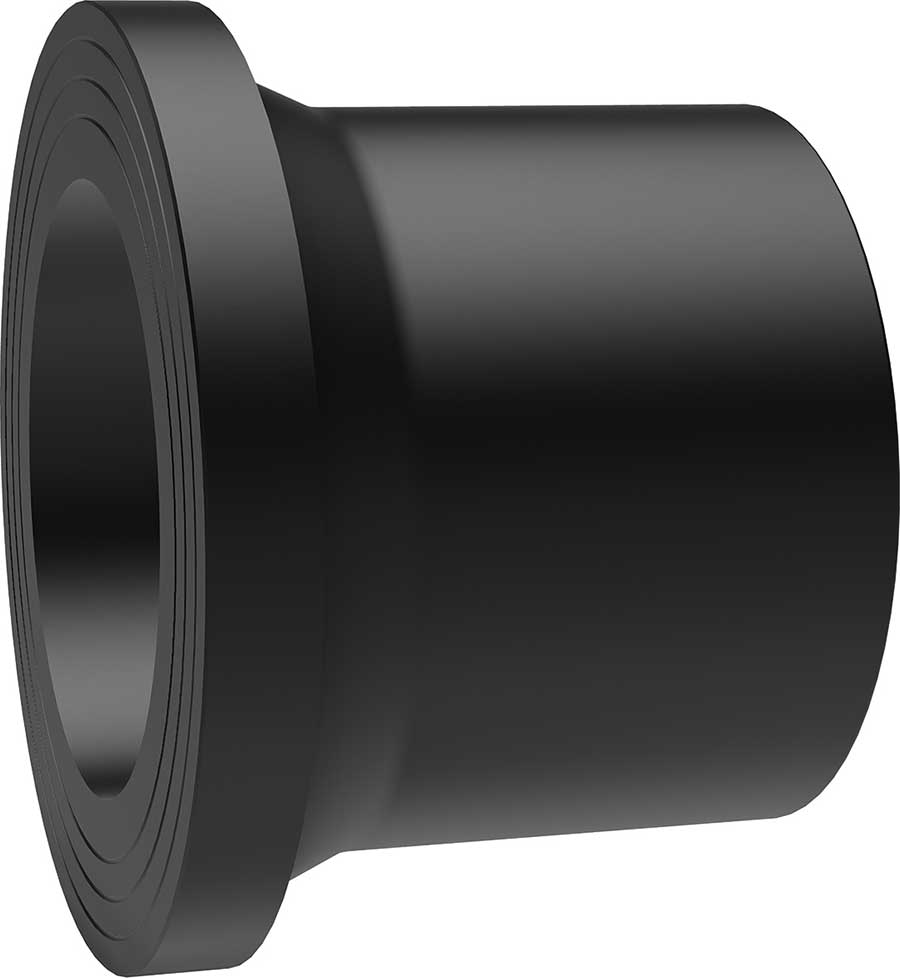

Plasson Stub Flange Adaptor Long SDR11

The Plasson Stub Flange Adaptor Long SDR11 terminates a PE pipe run in a flanged connection, welding onto the pipe with a plain spigot end and mating to a metal or plastic backing ring at the flange face.

Manufactured in PE100 and compliant with EN 1555, EN 12201, UK Water Reg4, the spigot end is welded directly onto the pipe (by butt fusion or inside an electrofusion coupler), giving a permanent, homogeneous joint with no jointing compound, flame or mechanical seal involved.

Key specifications

• Body material: PE100
• Standards: EN 1555, EN 12201, UK Water Reg4
• Suitable pipes: SDR 11

Available in 4 sizes from 90mm to 250mm.
