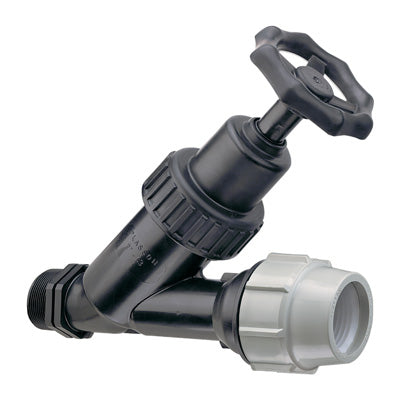

Plasson Angle Seat Valve Threaded x Compression - NBR Seal
The Angle Seat Valve controls flow between a compression connection for PE pipe at one port and a BSP male thread at the other, with the flow path turning through an angle inside the body rather than running straight through.
A compression nut and internal grip ring at one port let it go onto plain-end PE pipe, while a BSP male thread at the other lets it wind straight into a tap, riser or existing threaded pipework. It is manufactured in Polypropylene, high-grade copolymer and to ISO 17885 for water applications, AS/NZS 4129.
Key specifications
- Body material: Polypropylene, high-grade copolymer
- Standards: ISO 17885 for water applications, AS/NZS 4129
- Water pressure rating: PN 8
Available in 6 sizes from 20mm to 63mm.
