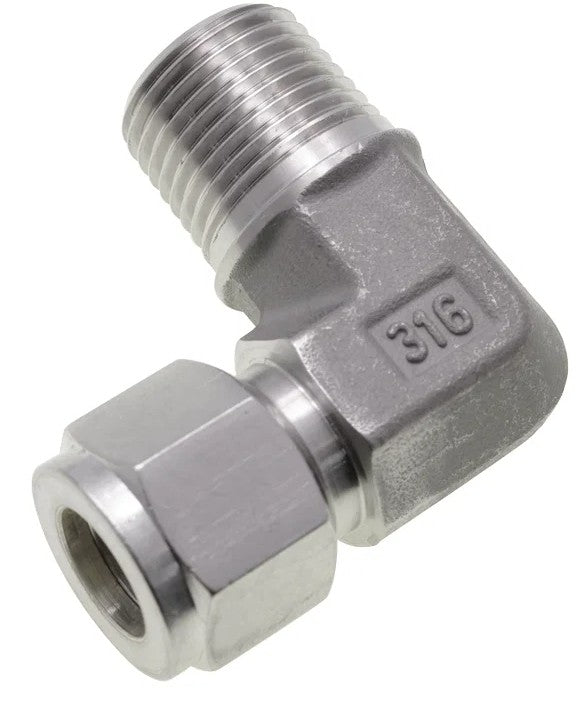

Male Stud Elbow Twin Ferrule 316L
Engineered for the most demanding industrial environments, the Male Stud Elbow Twin Ferrule 316L delivers a highly secure, leak proof seal when routing pipes or tubes to a female threaded port at a sharp 90° angle. The advanced twin ferrule design utilises two internal rings that bite firmly into the tubing, providing systems with exceptional resistance to heavy vibrations and intense pressure cycling.
Constructed from premium 316L low carbon, marine grade stainless steel, this fitting easily withstands rust, severe corrosion, and extreme temperature fluctuations. The compact angled design allows it to fit seamlessly into tight spaces, making it highly effective for directing compressed air or fluids in complex pneumatic and hydraulic systems. From connecting critical sensors, valves, and gauges in process instrumentation to maintaining reliable downstream refining and transport lines in the oil and gas industry, this elbow joint ensures maximum system integrity and safety under pressure.
Summary:
- Used to connect a pipe or tube to a female threaded port at a 90° angle
- Creates a highly secure, leak proof seal in high pressure or corrosive environments
- The design utilises two rings that bite into the tubing, offering exceptional resistance to vibration, pressure cycling and leaks
- 316L low carbon, marine grade stainless steel which is highly resistant to corrosion, rust and extreme temperatures
Applications:
Common applications include;
- The oil & gas industry, whereby the fitting is used in downstream refining and transport lines
- Process instrumentation, - connecting sensors, valves and gauges in critical systems
- Also used in pneumatic and hydraulic lines, whereby the direction of compressed air or hydraulic fluids at sharp right angles in tight spaces
