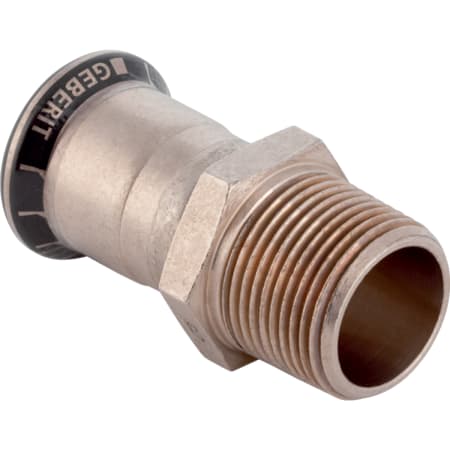

The Geberit Mapress CuNiFe adaptor with male thread NPT presses onto Mapress CuNiFe pipe at one end and gives an NPT male thread (to ASME/ANSI B1.20.1) at the other, for a straight transition onto US-standard threaded valves, tanks or equipment.
The pressed end uses the standard Mapress CuNiFe copper-nickel-iron construction with a CIIR seal, pressing indicator and leak-before-pressed warning.
Key features
- NPT pipe thread according to ASME/ANSI B1.20.1
- Pressing indicator confirms a completed press
- Leaky if unpressed — a visible leak shows if the fitting is put into service unpressed
- Seal ring made of CIIR, black
- Pressing socket with transparent protection plug
Suitable for
- For cooling and heating water without antifreeze agent
- For cooling and heating water with antifreeze agent
- For service water and process water
- For grey and black water with a pH value ≥ 5.5
- For seawater
- For extinguishing water (wet)
- For sprinklers (wet)
- For compressed air (oil purity class 0–3)
- For inert gases (e.g. nitrogen)
- For industry and shipbuilding
- For negative pressure
Available in 54mm.
