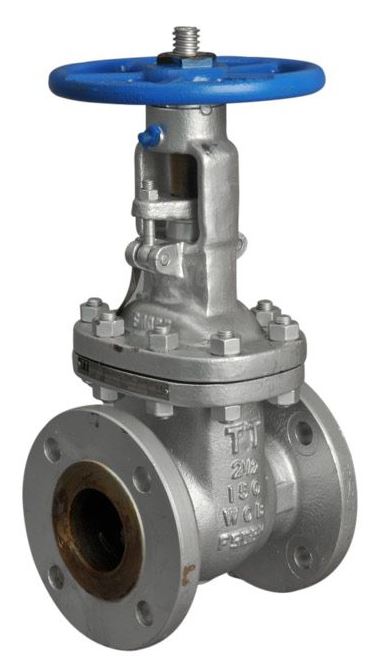

Cast Steel Flanged Gate Valve PN16
Cast Steel Flanged Gate Valve PN16
£337.78(Inc. VAT)
£281.48(Exc. VAT)
Pickup available at Trade Counter - Treforest Industrial Estate
Usually ready in 4 hours
Description
Cast Steel Flanged Gate Valve PN16
The Cast Steel Gate Valve is suited for most pipeline applications.
These models can be used in harsh environments due to the inclusion of an internal anti-corrosion coating. Constructed from high grade, grey cast iron, they carry a design life in excess of 40 years when correctly maintained and serviced.
Summary:
- Flanged PN16
- A216 Gr WCB,
- Trim 13% CR + HFS
- Outside Screw & Yoke
- Bolted Bonnet
- Design to API 600 Rated CL150
- Temperature - 29°C to 425°C
Pressure Ratings
Class 150lb (Bar)
Shell Test - 30
High Pressure - 22
Back Seat - 22
Low Pressure - 6
Material
Cast Steel
Connection
Flanged PN16
Seat Ring
Stellite Gr 6 Faced
Wedge
ASTM AS16 Gr WCB + 13 Cr Faced
Gasket
Stainless Steel + Graphite
Bonnet
ASTM A216 Gr WCB
Stem
ASTM A182 F6a
Yoke
ASTM A216 Gr WCB
Lantern Ring
ASTM A276 Type 410
Gland
ASTM A276 Type 410
Working Temperature
-29°C to 425°C
