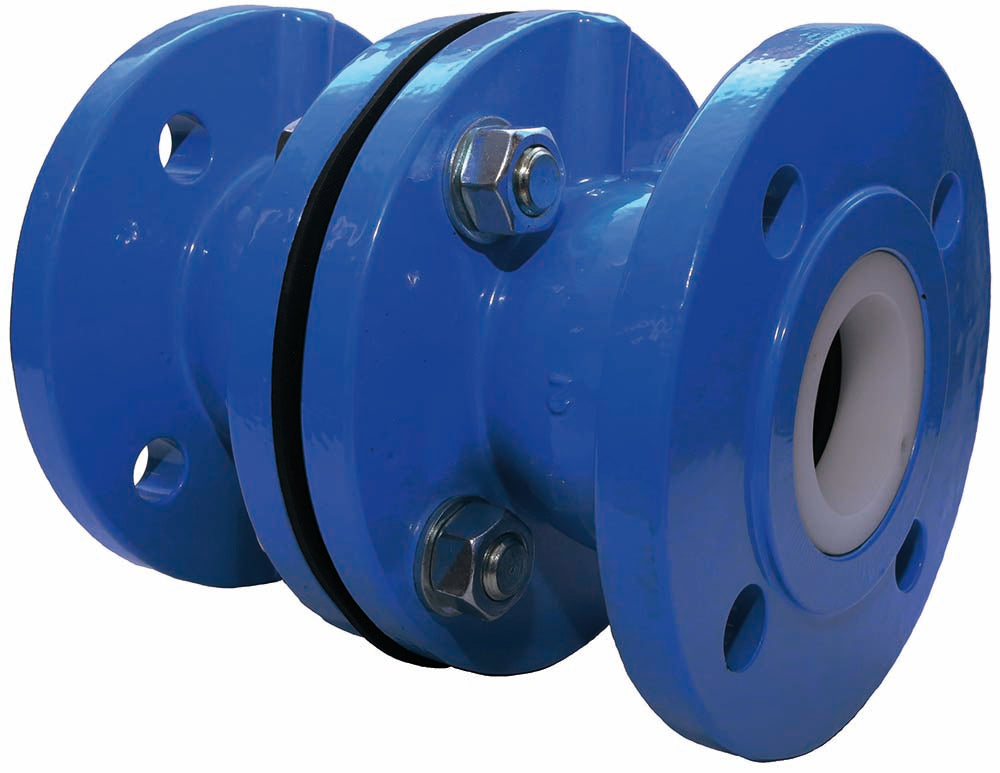

Albion Ductile Iron Double Check PN16 - ART 236
- WRAS approved
- PN16 pressure rated
- Epoxy coated finish
Albion Ductile Iron Double Check PN16 - ART 236
£699.74(Inc. VAT)
£583.12(Exc. VAT)
Pickup available at Trade Counter - Treforest Industrial Estate
Usually ready in 4 hours
Description
Ductile Iron Double Check PN16 - ART 236
An Exceptionally robust, epoxy coat finished Double Check valve with flange mounting to PN16. Capable of operating in any position with minimum head loss, this valve is silent, compact and does not generate hammering. With its return spring functionality, the valve is designed to control flow between tank and pump and can be used as a manual on/off valve for tank venting applications. When the flow stops, the disc swings back onto the seat to block reverse flow. The flat seal guarantees sealing. The Ductile Iron Double Check valve is perfect for clear liquids and gas mediums.
Summary:
- Flange Mounting PN16 only (EN 1092-2)
- Epoxy Coat Finish
- Operates in any position
- WRAS Approved as a non-return valve
Specifications:
PN (Pressure Nominale)
PN16
Body
Ductile Iron
Plunge Shaft
Cz132 DZR Brass
Plunger Top
Delrin 150
Sealing Ring
Delrin 150
Studs
Mild Steel
Guide Bush
Cz132 DZR Brass
Spring
Stainless Steel Grade 304 S26
Gasket
Nitrile 70 Shore
Pressure rating
16 Bar
Temperature
0°C to +23°C
