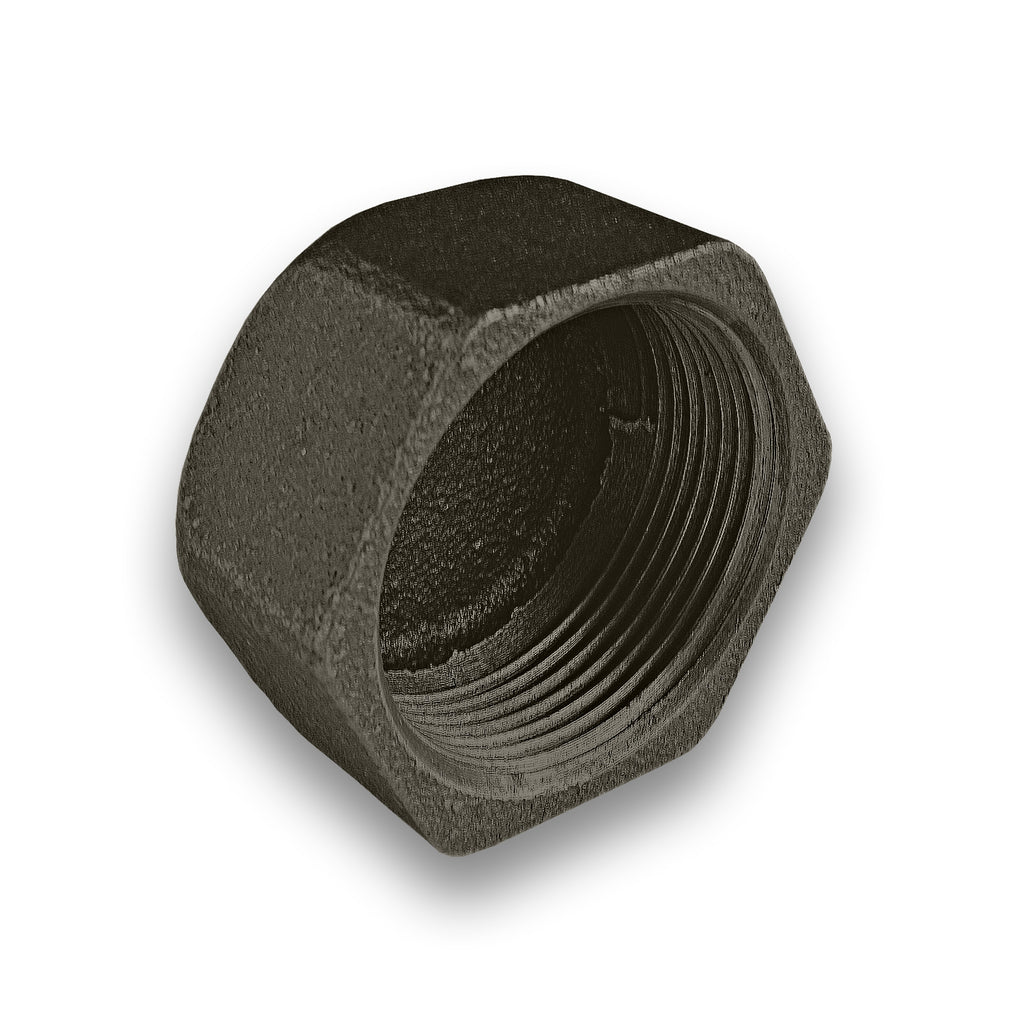

Black Malleable Iron Hex Cap BS143/1256
Frequently referred to as End Caps or Stop Ends, these hexagon shaped Black Malleable Iron caps are commonly used by plumbers to stop the flow of water or gas from pipe ends. They can be used as a temporary measure whilst maintenance is carried out, or a permanent cover to unused ends of pipe.
Summary:
Blackheart Cast Iron (EN1562) Construction
Pipe end caps
Beaded reinforcement
ISO 7-1 taper/parallel connection
Specifications:
Standard BS EN 10242:1995
Connection Type
Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1
Material/Finish
Cast Iron (EN1562)
Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust
Reinforcement
Beaded
Maximum Operating Temperature
300°C to 20 bar (PN20)
