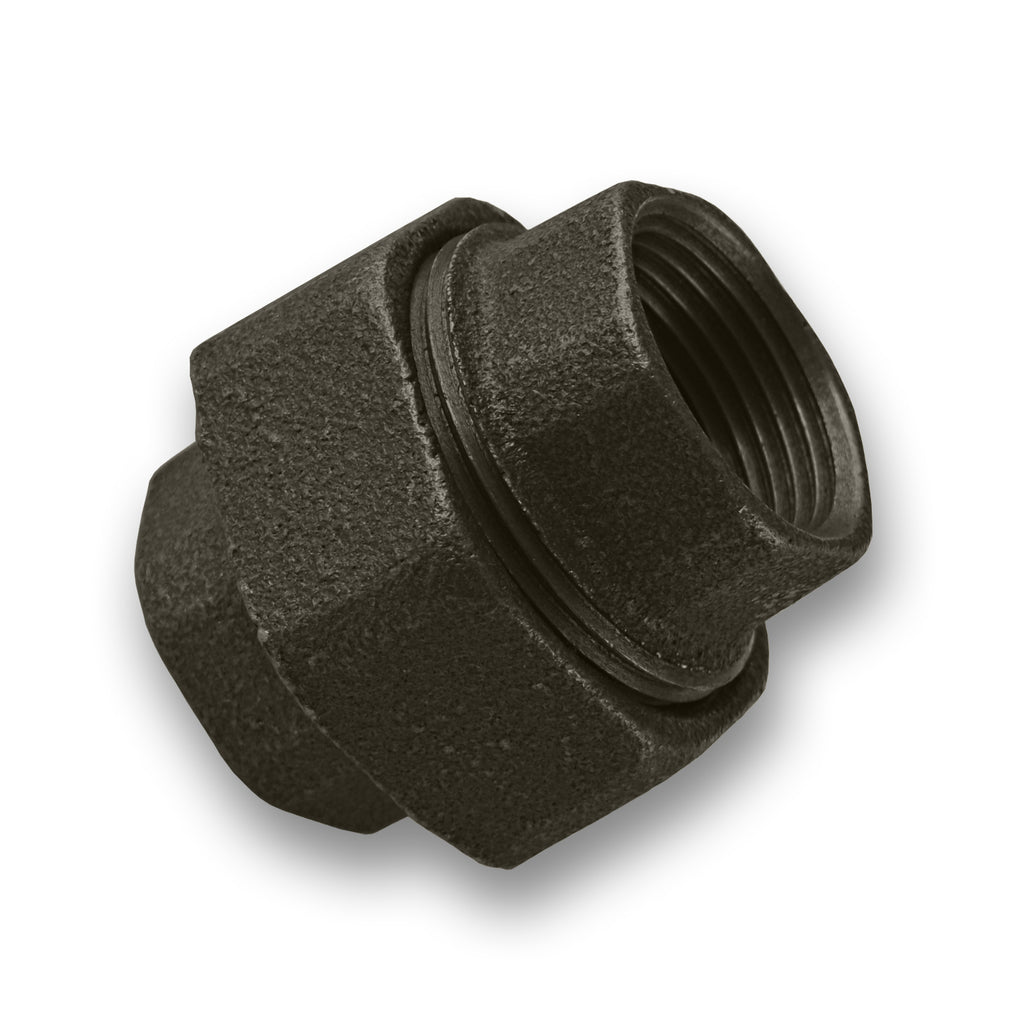

½ - 2" Black Malleable Iron Navy Union Fitting
This black bronze to bronze (double bronze) cone seats also known as a navy union fitting, available in a range of sizes from 1/2" to 2" inches and has an ISO 7-1 taper/parallel rated connection type. Also available in Galvanised finish.
Summary:
- Female BSPT taper threaded ends to ISO 7-1
- Cast Iron EN1562 construction
- EN10242 Zinc coated
- ISO 7-1 taper/parallel connection
- Maximum operating pressure: 25 bar (PN25) at up to 120°C
- Maximum operating temperature: 200°C at up to 20 bar (PN20)
- Operating temperature range: -20°C - 200°C
Specifications:
Standard
BS EN 10242
Connection Type
ISO 7-1 (Taper/Parallel)
Material
Cast Iron (EN1562)
Zinc Coating
EN10242
Reinforcement
Beaded
