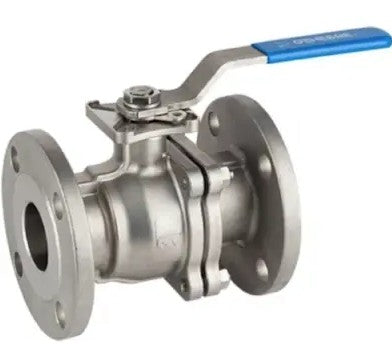

Albion Full Boar Ball Valve Flanged ASA150 – ART 928

Built for the demands of industrial environments, the Albion ART 928 is a 316 stainless steel, two-piece ball valve engineered to give precise, reliable control over liquid and gas flow. Its full bore design,-where the internal diameter matches the pipe, eliminates pressure drops, keeps flow rates consistent, and makes in-line cleaning and pigging operations effortless.

Rated to 20 bar and capable of handling temperatures from -25°C to +200°C, this valve holds its own across a wide range of chemical, processing, and manufacturing applications. The ANSI/ASA 150 flanged connection ensures a secure, standardised fit, while ATEX approval makes it a trusted choice in explosive or sensitive environments where safety cannot be compromised.

Operation is just as flexible as its application. Run it manually with the locking lever for hands-on control, or automate it entirely by mounting a pneumatic or electric actuator directly onto the integrated ISO 5211 pad — no adaptor required.

Summary:

• Stainless steel 2 piece ball valve used to securely shut off or start the flow of liquids and gases
• ANSI/ASA 150 flange connection
• 20 Bar pressure rating
• Operating temperature range of -25°C to +200°C
• 316 stainless steel body
• ATEX approved
• Operated manually via a locking lever, or fitted automatically with a pneumatic/electric actuator using its ISO 5211 direct-mount pad

Applications:
Commonly used in;

• Oil & gas
• Petrochemical
• Chemical processing, and,
• Hazardous environments
